Gen 2 Hi-Speed Framing CCD Cameras, PT-3240 series

PT-3240 Hi-Speed Framing CCD cameras are built around high-performance 18 mm Gen 2 Image Intensifiers coupled with 460 Kpix CCD sensor. The coupling is achieved employing a fiber optic minifier, that significantly increases camera’s sensitivity and reduces its size. It is the perfect tool for R&D and industrial applications. In the standard configuration camera features C lens mount, glass input window, S-25 photocathode, 50 ns min exposure time and USB 2.0 interface. Image Intensifiers are available with various photocathodes to cover the spectral range from X-ray to 850 nm. OEM and custom-configured versions available to match user-specific applications. The camera is covered by one-year warranty. Optional equipment includes: Multichannel Digital Delay Generator, Hi-Intensity Light Source and variety of C mount lenses.

Photocathode Size	18 mm Dia
Photocathode	S-25
Spatial resolution	>30 lp/mm
CCD size	780 x 580 pix
Exposure time	50 ns to 1 ms
Frame rate	10 f/s
Dimensions	95 x 105 x 105 mm
Weight	550 g


Advanced Hi-Speed Framing CCD Cameras, PT-3350 series

PT-3350 Hi-Speed Framing CCD cameras are built around high-grade 18 mm Image Intensifiers coupled with 1.4 Mpix CCD sensor. The coupling is achieved employing a fiber optic minifier, that significantly increases camera’s sensitivity and reduces its size. Compact and lightweight it is the perfect tool for R&D and industrial applications. In the standard configuration camera features C lens mount, glass input window, S-25 photocathode, 10 ns min exposure time and either USB 2.0 or GigE interface. Image Intensifiers are available with various photocathodes to cover the spectral range from X-ray to 950 nm. OEM and custom-configured versions available to match user-specific applications. The camera is covered by one-year warranty. Optional equipment includes: Multichannel Digital Delay Generator, Hi-Intensity Light Source and variety of C mount lenses and adapters.

Photocathode Size	18 mm Dia
Photocathode	S-25 / GaAs
Spatial resolution	>45 lp/mm
CCD size	1.4 x 1.0 Kpix
Exposure time	10 ns to 1 ms
Frame rate	10 f/s
Dimensions	95 x 105 x 105 mm
Weight	550 g

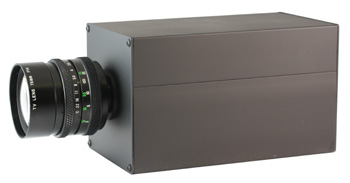

25 mm Hi-Speed Framing CCD Cameras, PT-3270 series

PT-3270 Hi-Speed Framing CCD cameras are built around high-grade 25 mm Image Intensifiers coupled with 1.4 Mpix CCD sensor. The coupling is achieved employing a fiber optic minifier, that significantly increases camera’s sensitivity and reduces its size. It is the perfect tool for R&D and industrial applications. In the standard configuration camera features C lens mount, fiber-optic input window, S-25 photocathode, 10 ns min exposure time and either USB 2.0 or GigE interface. Image Intensifiers are available with various photocathodes to cover the spectral range from X-ray to 850 nm. OEM and custom-configured versions available to match user-specific applications. The camera is covered by one-year warranty. Optional equipment includes: Multichannel Digital Delay Generator, Hi-Intensity Light Source and variety of C mount lenses and adapters.

Photocathode Size	25 mm Dia
Photocathode	S-25
Spatial resolution	>30 lp/mm
CCD size	1.4 x 1.0 Kpix
Exposure time	10 ns to 1 ms
Frame rate	10 f/s
Dimensions	180 x 105 x 105 mm
Weight	800 g


Streak/Frame Camera PT008
PT008 camera built aroud Streak/Framing tube and can operate in either Streak or Single Frame modes. Camera is lightweight and has very compact design. Camera features large photocathode, picosecond resolution, high gain and compact design. Combination of high performance and very reasonable price make it attractive for wide range of applications.

Photocathode (standard)	S-20
Spatial resolution	20 lp/mm
Temporal resolution	20 ps
Streak speeds range	100 ps/mm - 30 µs/mm
Jitter	± 50 ps
Exposure time	10 ns - 600 µs
Repetition rate	up to 10 Hz
Dimensions	34 x 9 x 18 cm
Weight	3 kg

Items listed on this page do not represent the full line of available products. If you do not see the specific product that suites your needs you are welcome to contact us. We will be glad to discuss possible product modifications or a new design that will meet your requirements. Having over 20 years of R&D experience in Photonics helps us provide our customers with cost effective and technically advanced solutions.
